Project 1
The Transformation
My model design start from rotating of three basic shapes.At the same time the application of magnification and additive are also happened in the transformation.

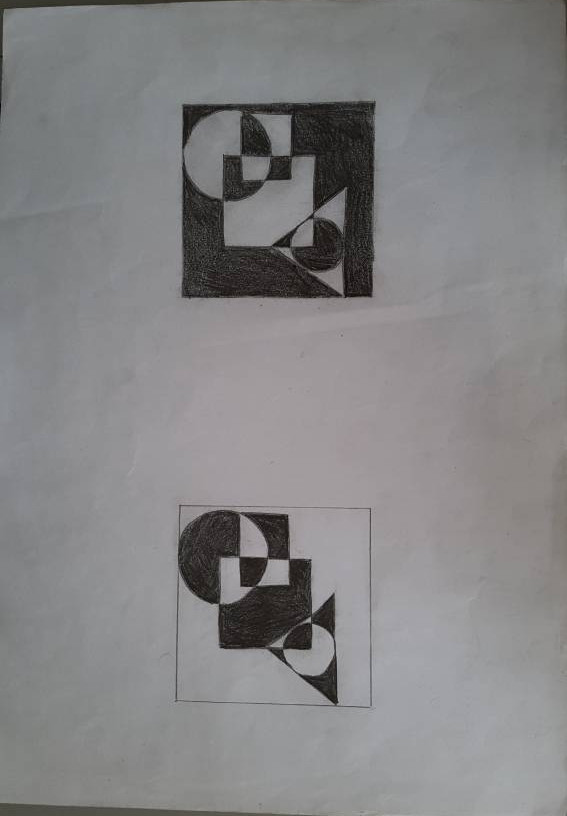

Figure Ground
So I picked the 7th design to set as my figure ground.There is two decision to choose whether which one is better to extrude. Thus, I picked the right side as my figure ground and extrude from white colour sides.
Sketch Model & Study Model
The sketch model and study model i created i using model card.
Study model
Sketch model
figure ground
Final Model
Finally , the final model i create using by model card as well. As it can see that there is more elements are added into the model. Meanwhile ,the application of subtractive and additive are happened in my model. Grouping method of edge to edge contact, face to face contact and interlocking are appear in my model too. The organization of model is clustered.
 |  |
|---|---|
 |  |
 |
